1986-87 Big Red 250es Rear Disc Brake Bracket Kit

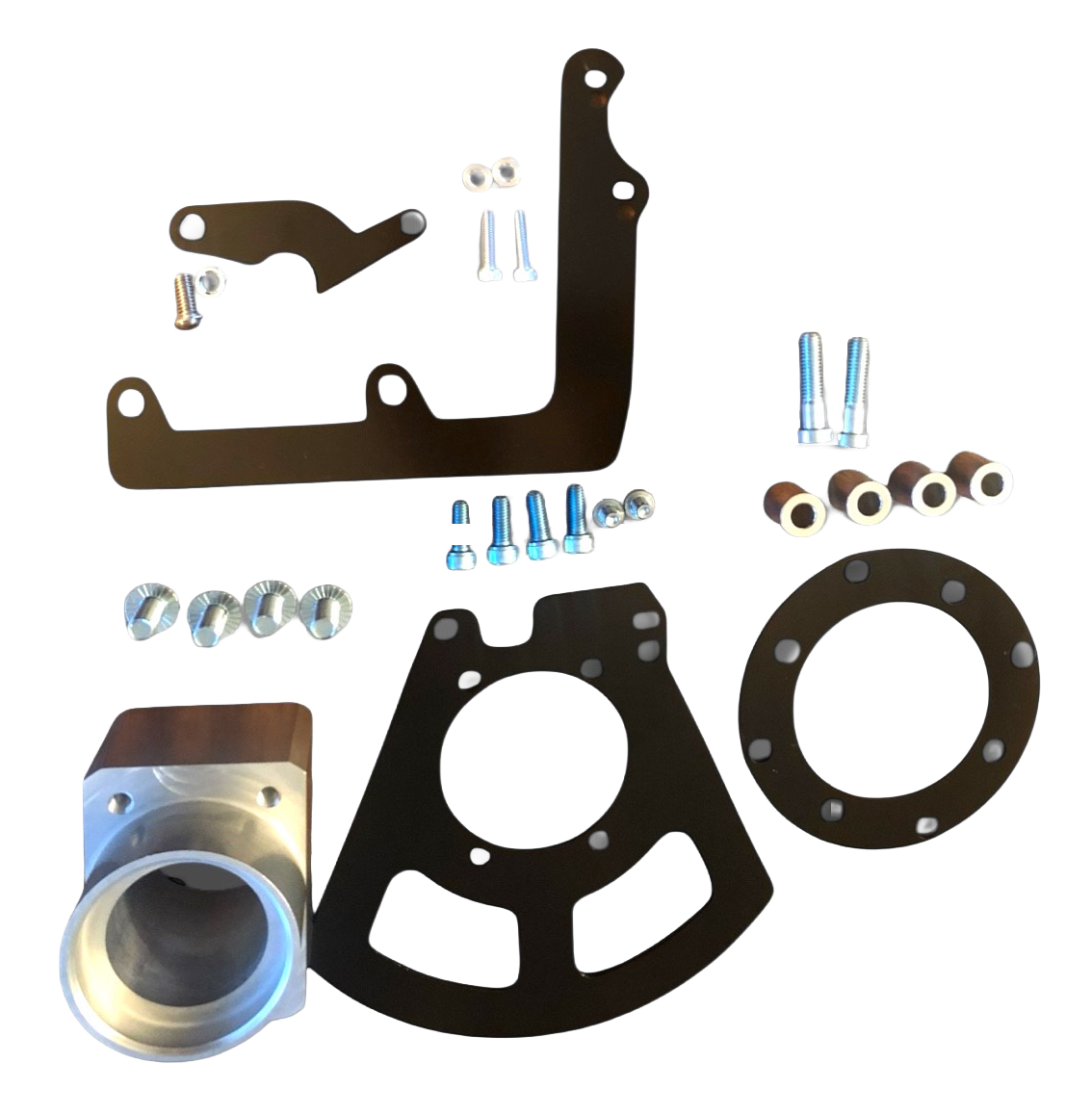

Are you tired of constantly working on your old drum brakes? It's time to upgrade to the Swamp Outlaw Disc Brake Kit! This kit includes the steel brackets and all the necessary hardware to install, Brake components are sold separately and listed below! This gives you the option to run OEM Honda components or the replacement parts available online. This is a simple bolt in kit with no cutting or welding required. This kit was originally designed and built by Brad Rye and has many years of proven testing in the ATC community!

The REAR disc brake kit fits the 1986-87 Big Red 250ES (see our other listing for 1985 model)

NOTE: Will NOT work with the factory 9” Wheel. Requires 12” or larger Diameter Wheel

You'll need the following parts in addition to the Disc Brake Bracket Kit

-1998-2008 400EX Brake Rotor OEM# 43251-HN1-003

-2004-2014 TRX 450 Rear Brake Caliper OEM# 43150-HP1-006

-2004-2014 TRX 450 Rear Master Cylinder OEM# 43510-HP1-016

-2004-2014 TRX 450 Rear Brake Hose OEM# 43310-HP1-016

Thank you for choosing Swamp Outlaw for all your Custom parts!
